Properties |
Parameters |
Motherboard Level |
Industrial |
CPU |
RK3566, Cortex-A55, quad-core |
OS |
Linux 4.19 |
FLASH |
8Gbytes EMMC |
RAM |
2Gbytes LPDDR4 |
Properties |
Parameters |
Description |
Color |
16.7M (16777216) colors |
24 bit color 8R8G8B |
Panel Type |
IPS |
IPS process, TFT LCM with wide viewing angle |
Viewing Angle |
85/85/85/85 (L/R/U/D) |
Best View: symmetrical |
Active Area (A.A.) |
304.13mm(W) * 228.10mm(H) |
1024*768 Pixel |
View Area (V.A.) |
305.50mm(W) * 229.50mm(H) |
1024*768 Pixel |
Resolution |
1024*768 Pixel |
Available for 0°/90°/180°/270°rotated display |
Backlight |
LED |
≥50000H(time of the brightness decaying to 50% on the condition of continuous working with the maximum brightness) |
Brightness |
300nit |
100 levels adjustment(It's not recommended to set brightness to 1%~30% of the maximum, which may lead to LCD flicker.) |
Note: You can use dynamic screen saver wallpapers to avoid afterimages caused by fixed page display for a long time. |
Properties |
Conditions |
Min |
Typ. |
Max |
Unit |
Power Voltage |
- |
12.0 |
12.0 |
36.0 |
V |
Operation Current |
VCC = +12V, Max Backlight |
- |
1150 |
- |
mA |
VCC = +12V, Backlight off |
- |
350 |
- |
mA |
|
Recommended power supply: 12V 1.5A DC |
Properties |
Conditions |
Min |
Typ. |
Max |
Unit |
Working Temperature |
60%RH at 12V voltage |
-20 |
25 |
70 |
℃ |
Storage Temperature |
- |
-30 |
25 |
80 |
℃ |
Working Humidity |
25℃ |
10% |
60% |
90% |
RH |
Protective Paint |
Yes |
||||
ESD |
Air discharge±8KV, Contact discharge ±6K |
||||
EFT |
Group pulse interference ± 2KV |

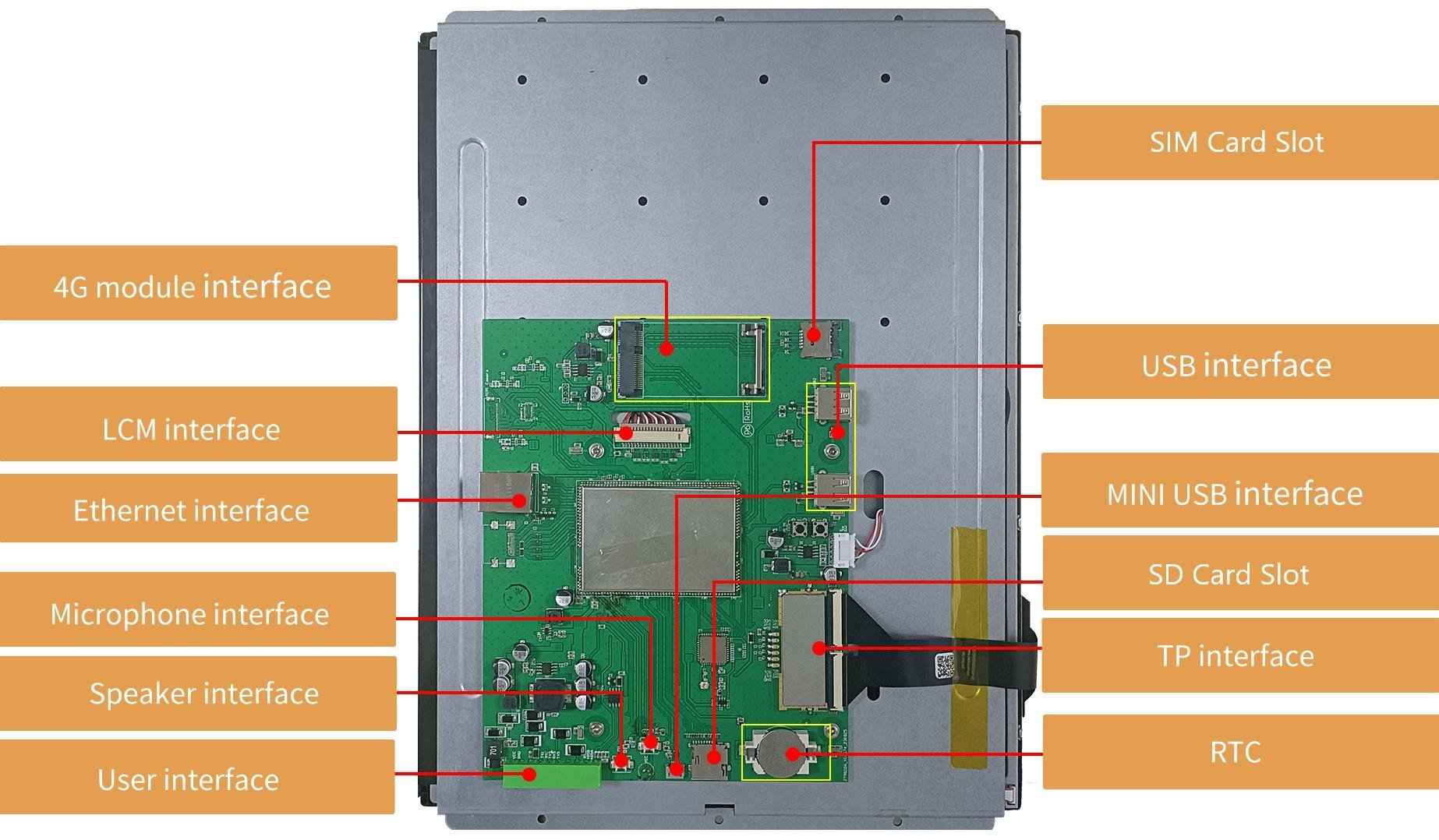

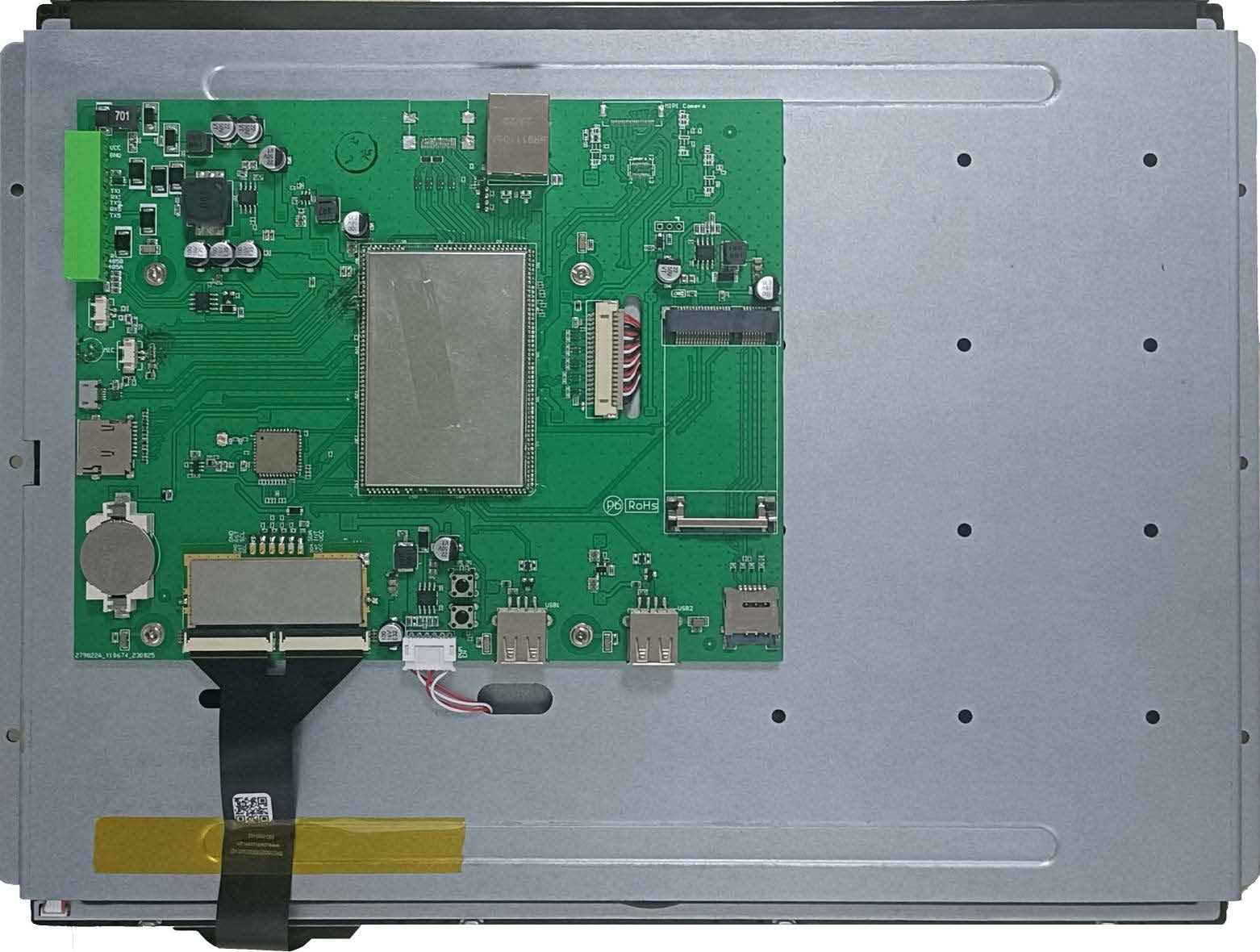

Properties |
Parameters |
Description |
COM |
2-way RS232 |
UART5 & UART9 |
1-way RS485 |
UART8 |
|
1-way TTL/COMS |
UART0 |
|
USB Interface |
3-way |
Type-A*2,MICRO*1 |
Speaker Interface |
1-way |
2Pin_1.25mm interface |
Microphone Interface |
1-way |
2Pin_1.25mm interface |
Camera Interface |
1-way |
USB |
4G Module Interface |
1-way |
Factory not configured, can be customized to add |
SIM Card Slot |
1-way |
- |
SD Card Slot |
1-way |
Drawer type card slot(Max 64G) |
Ethernet Interface |
1-way |
10/100Mbps |
WIFI Module |
1-way |
IEEE 802.11Bb/g/n,2.4G,Bluetooth |
RTC |
1-way |
Button cell for power supply. Accuracy: ±20ppm @25℃ |
Properties |
Conditions |
Min |
Typ. |
Max |
Unit |
Baud Rate |
User Set |
2400 |
115200 |
230440 |
bps |
Output Voltage (TXD) |
Output 1 |
- |
-5.0 |
- |
V |
Output 0 |
- |
5.0 |
- |
V |
|
Input Voltage (RXD) |
Input 1 |
- |
-5.0 |
- |
V |
Input 0 |
- |
5.0 |
- |
V |
|
Baud Rate |
User Set |
2400 |
115200 |
921600 |
bps |
(V_AB) |
Output 1 |
2.5 |
5.0 |
- |
V |
Output 0 |
- |
-5.0 |
-2.5 |
V |
|
(V_AB) |
Input 1 |
0 |
2.5 |
- |
V |
Input 0 |
- |
-2.5 |
-0.2 |
V |
|
Interface |
Support TTL/COMS,RS232 or RS485 level |
||||
Socket |
10Pin_3.81mm Socket |
Основные параметры | ||
Степень применения | Индустриальный класс | |
Защитное покрытие | Есть | |
Дисплей | ||
Диагональ | 15.0" | |
Разрешение | 1024×768 | |
Срок жизни | ≥ 50 000ч | |
Яркость | 300кд/м2 | Другие товары |
Цветность | 16.7M (16777216) 24bit 8R8G8B | Другие товары |
Тип ЖК-дисплея | IPS, TFT LCD | Другие товары |
Угол обзора(V.A.) | Широкий угол обзора, 85/85/85/85 (L/R/U/D) | |
Поддержка поворота 0°/90°/180°/270° | Есть | Другие товары |
Область отображения (Active Area, A.A.) | 304.13*228.10 | |
Область просмотра (View Area, V.A.) | 305.50*229.50 | |
Подсветка | LED | |
Размеры | ||
Размеры (ШxВxГ), мм | 351*253.5*34.1 | |
Вес нетто | 1430 | |
Сенсорные параметры | ||
Тип Touch | CTP (емкостная сенсорная панель) | Другие товары |
Твердость поверхности | 6H | |
Светопропускание | Более 90% | |
Напряжение и ток | ||
Напряжение питания, тип. | 12V | Другие товары |
Рабочий ток | 12.0...36.0 тип. 12V | |
Рабочая среда | ||
Рабочая температура | -20...70℃ | |
Температура хранения | -30...80℃ | |
Рабочая влажность | 10%...90% RH тип. 60% | |
ESD test | Air discharge±8KV; Contact discharge±6KV | |
EFT test | Group pulse interference ±2KV | |
Interface | ||
RS485 | Есть | |
RS485 Interface | UART8 | |
Интерфейс | ||
Выходное напряжение | Output 1: тип. -5~-3V. Output 0: тип. 3~5V | |
Входное напряжение (RXD) | Input 1: тип. -15~-5V. Input 0: тип. 5~15V | |
Пользовательский интерфейс | 2-way RS232. UART5 & UART9 1-way RS485. UART8 1-way TTL/COMS UART0 | |
SD card slot | Drawer type card slot(Max 64G) | |
USB | Type-A*2,MICRO*1 | Другие товары |
Интерфейс | RS232*3; RS422*2 | |
WIFI interface | IEEE 802.11Bb/g/n, 2.4G, Bluetooth | |
4G module | Not configured (Configurable for 4G module) | Другие товары |
WLAN | 10/100Mbps | |
Интерфейс камеры | USB, Not supported by Mipi | Другие товары |
RTC (Super-capacitor) | Button cell for power supply. Accuracy: ±20ppm @25℃ | |
Разъем | 10Pin_3.81mm Socket | |
Формат данных | Support TTL/COMS, RS232 or RS485 level | |
Динамик | 2Pin_1.25mm interface | |
Интерфейс динамика | Left & Right | Другие товары |
Выходное напряжение (V_AB) | Output 1: тип. -5V; Output 0: тип. 5V | |
Входное напряжение (V_AB) | Input 1: тип. -5V; Input 0: тип. 5V | |
Память | ||
RAM Memory | 1 Gbytes DDR3 | |
Flash | 8 Гбайт EMMC | |
Основные параметры управления | ||
CPU | RK3566, Cortex-A55, четырехъядерный | Другие товары |
OS | Linux 4.19 | |
Datasheet | ||
Datasheet | Загрузить | |
Версия Datasheet | 2023-12-19 | |
Datasheet | ||
Вес и габариты | ||
Высота (мм) | 34.1 | |
Ширина (мм) | 253.5 | |
Вес (грамм) | 1430 | |
Прочие | ||
WiFi | Есть | Другие товары |
Гарантия | 1 год | |
Страна бренда | Китай |
